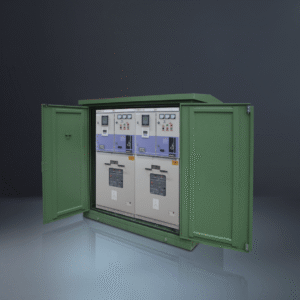

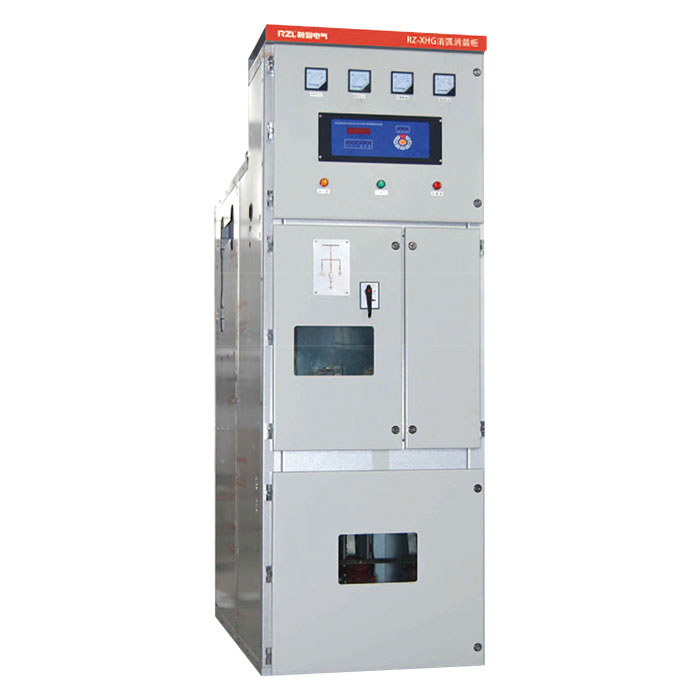

Intelligent Arc Extinguishing Device

Advanced Arc Suppression for 3–35kV Ungrounded Power Systems

In China’s 3–35kV power supply systems, most are neutral ungrounded. During single-phase grounding, the grid can continue operating with faults, which improves reliability and reduces operating costs. However, this mode is prone to arc grounding overvoltages and phase-to-phase short circuits, especially when the fault current is high—posing serious risks to power equipment.

Traditional solutions used arc suppression coils to compensate for capacitive current and reduce arc formation. However, due to limitations such as ineffective high-frequency suppression and incomplete compensation, this method has proven insufficient.

The Intelligent Arc Extinguishing Device solves these issues by using phase-controlled vacuum contactors. When an arc occurs due to a ground fault, the device quickly grounds the fault point, eliminating the arc and preventing overvoltage damage. It offers:

• Fast fault response and arc suppression

• Enhanced protection for power equipment

• Improved system stability and safety

This device is ideal for distribution networks, substations, and industrial power systems operating in ungrounded conditions.
